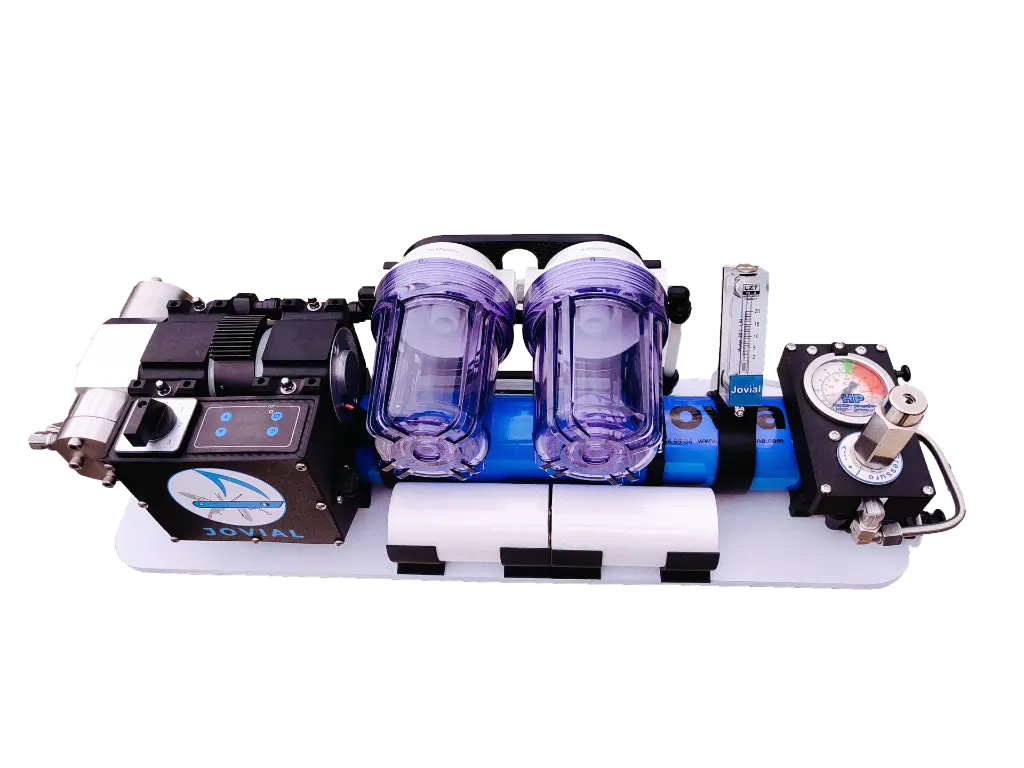

Watermaker "Pahi" 15liters/hour

Your essential ally for pastis.*(*Does not produce ice cubes)

Compact model

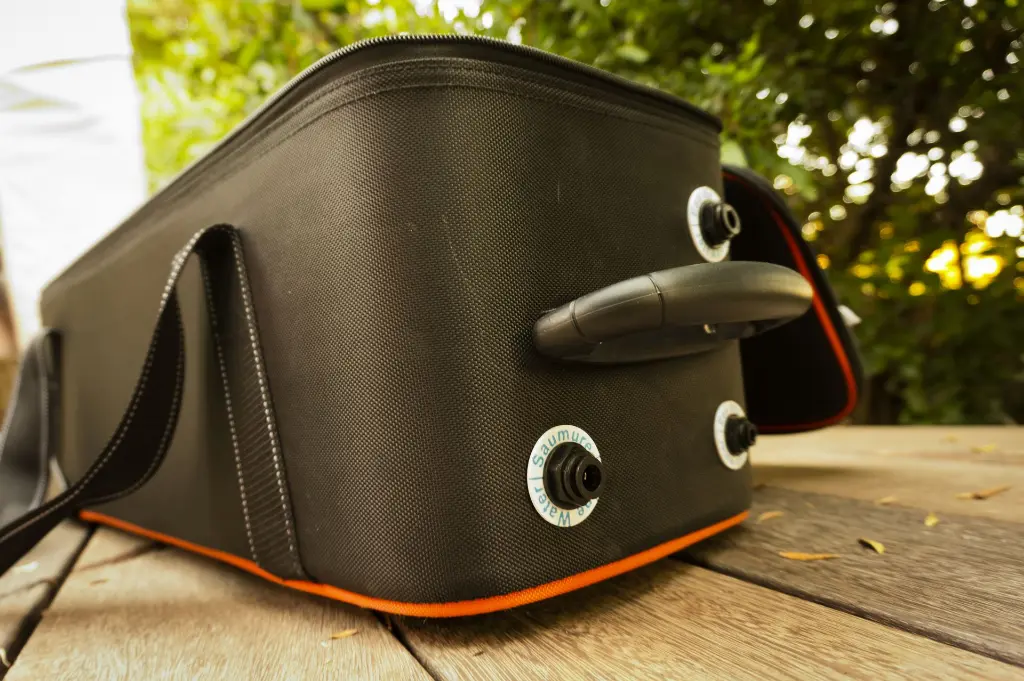

Transportable in its wheeled suitcase
Lightweight
Low noise nuisance
Low power consumption
Easy to use
Plug and play thanks to its instant connections
12 Volts DC Onboard desalination units
3,291.67 € 3,291.67 €
(Hors taxes)
( 0.00 €/Units)
  • Version 15 litres/hour:
  • Options 15 litres/hour:
Contact Us
Documents
Fiche technique PAHI 15LH
Advantages:Contenu:Design features:

Advantages:

Contenu:

    • Order:
      • Self-regulating stainless steel 316L adjustment valve with ceramic needle
      • High-pressure gauge 0..100 bars
      • Flow meter 0-20 litres/hour adjustable
      • Electrical panel with programmable auto rinse
    • Pump(s):
      • Dedicated 12 V high-pressure pump in stainless steel 316L
      • Self-priming feed pump, with 5m of seawater hose
    • Membrane:
      • Membrane + 21" membrane holder for seawater
    • Pre-filtration:
      • Pre-filter block + replacement cartridges 20 and 5 µm, size 5"
    • Fittings & pipes:
      • HP fittings in stainless steel 316L.
      • Instantaneous BP fittings in Acetal + 5m of brine & fresh water hoses

Design features:

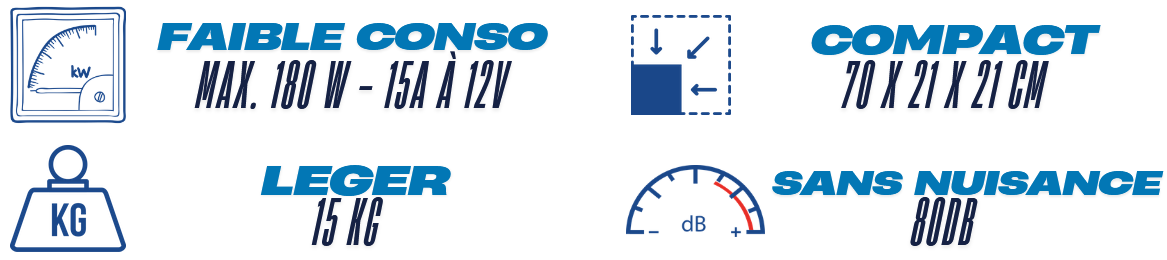

  • Production: 15L/H*
  • Electrical consumption: 180 Watts (15A@12V)
  • Membrane type: SW30 – 2521
  • Salt rejection rate: >99%
  • Operating pressure: 55-60 bars
  • Maximum suction height: 2m
  • Dimensions: with suitcase: 85x30x28 cm and without suitcase: 70x22x22 cm
  • Weight of the kit: 15Kg
  • Noise level: < 80dB  at 1m
  • Membrane lifespan: 5 years. (subject to appropriate maintenance)

*The production of fresh water varies with the temperature and salinity of the raw water. Nominal performance is given at 26°C and with a salinity of 33g/l.

Note: The dimensions, colours, and features of the product are subject to change without notice as it evolves. The visuals presented are not contractual.


Questions/réponses:

Specifications

Version 15 litres/hour: Compact, Valise, Modulaire
Options 15 litres/hour: Commandes déportées (Déjà inclus en version Modulaire, non disponible en version Valise), Système rinçage auto (Déjà inclus sur les versions Compact & Modulaire)
