Watermaker Ohana 80Liters/hour modular

The best-seller: Simple & Effective

Enjoy a freshwater production of 80 litres/hour

Standard and easily replaceable parts, available worldwide.

A watermaker designed for sailors, by sailors.

Onboard desalination units

2,491.67 €

(Hors taxes)

Control panel
- Panneau de commande noir effet carbone (+ 166.67 €)
- Sans Panneau déporté
HP PUMP
- Sans (Utilisation avec un nettoyeur haute pression)
- Pompe HP dédiée (+ 991.67 €)

Documents

Fiche technique OHANA 80/160LH

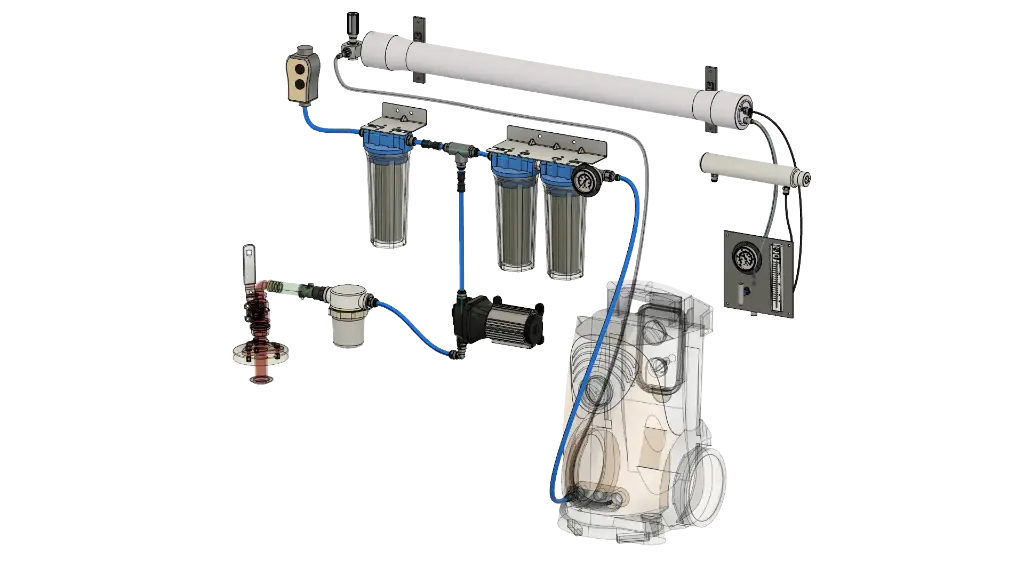

Product content:

Order:
- Modular control panel comprising: needle valve, pressure gauge(s), flow meter.
- Option: Without remote control panel
- Option: Custom polished mirror stainless steel panel
Membrane(s):
- Membrane holder assembly + membrane + supports
- Option: 2nd membrane for a production of up to 160l/h
Pump(s):
- Self-priming fuel pump
- Option: Dedicated high-pressure pump.
  *** The high-pressure pump is not included outside of options – The buyer will need to provide a suitable high-pressure cleaner ***
Pre-filtration:
- Pre-filter block + 10" filters
Rinsing:
- Automatic rinsing system + carbon filter.
Security(ies):
- 316L stainless steel safety valve HP
Fittings & Pipes:
- HP fittings in stainless steel 316L.
- Instantaneous BP fittings in Acetal.

Design features:

Production: 80L/H*
Electrical consumption: 1150W** 230VAC 50Hz
Membrane type: SW30 – 2540
Salt rejection rate: >99.5%
Operating pressure: 55-60 bars
Dimensions: See diagram above.
Weight of the kit (excluding high-pressure pump): 22Kg. Dedicated high-pressure pump = 13Kg
Acoustic pressure: < 90dB***
Membrane lifespan: 5 years. (subject to appropriate maintenance)

*Dependent on salinity and temperature conditions.

**For an installation with a Karcher® model K4. Works with a generator type Honda 2000W or similar, or on your 230V pure sine wave inverter if it can handle the peak starting current (~2000w)

***For a system with Karcher model K4, excluding any potential generator. Almost inaudible when enclosed in a wedge.

Note: The dimensions, colours, and characteristics of the product are subject to change without notice as the product evolves. The visuals presented on this page are not contractual.

Frequently Asked Questions:

How will I install and maintain my kit?

Thanks to the quick connectors, the piping, and the provided manual, the installation is accessible to any DIY enthusiast.
The ideal location for installation depends on your boat. The criteria are: the accessibility of water inlets/drainage, the power supply, the available space, and acoustic insulation. With the optional remote control panel, accessibility for starting/stopping is made easier.
The maintenance is made easier by the automatic rinsing system. The filters and membranes are of standard size, available from any shipchandler.
In case of need, replacement parts are easily available worldwide. You remain in control of your system! No more waiting for specific parts from the manufacturer.
Jovial Marine assists you by email or phone.

In what case should one choose a pressure washer (Karcher or similar) instead of a high-pressure pump?

These are tried-and-tested consumer products.
They can be bought anywhere in the world.
Substantial savings compared to a specialised high-pressure pump.
They are also used to clean the deck and the hull.

If you do not wish to use a pressure washer, choose the dedicated pump option.

Why is the Karcher not provided?

In order to reduce shipping costs and provide you with an optimal price. For your information, a Karcher® K4 (water-cooled) costs around €195 in mainland France.

Can the Karcher work with seawater?

Even though pressure washers are not originally designed for this use, in practice, it poses no problem as long as they are rinsed with a flow of fresh water after each use. Thanks to the rinsing system included in the Jovial kit, the operation can be planned in advance.
