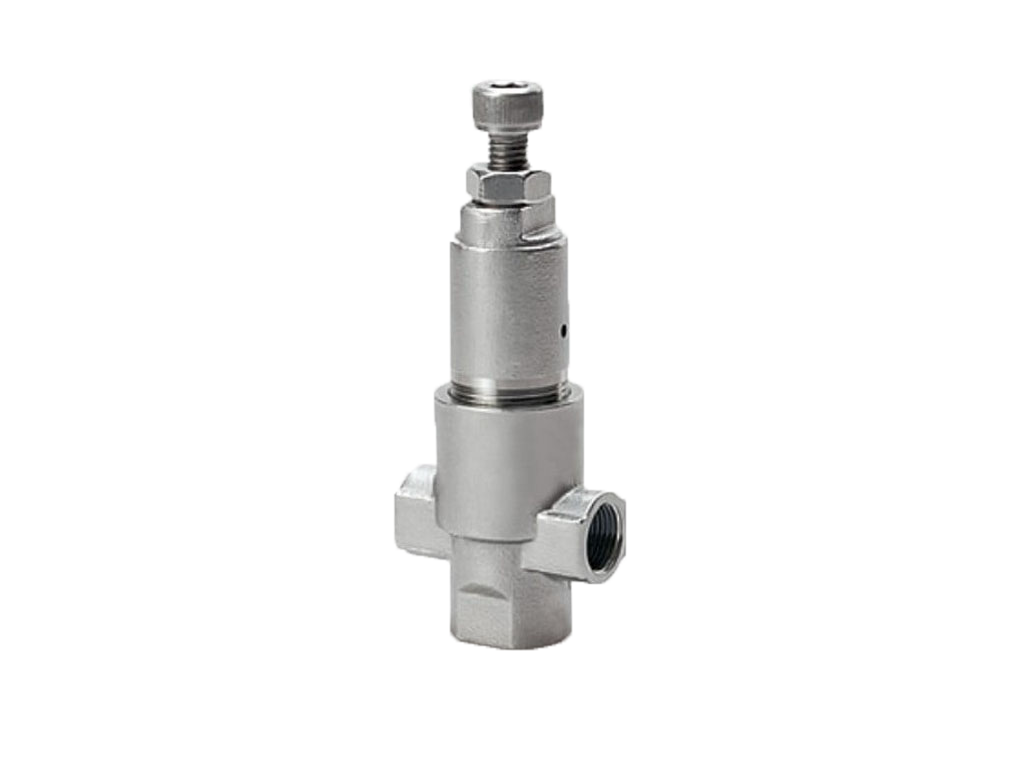

Safety valve

Name: Safety valve
Price: 99.17 EUR
Availability: InStock

Safety valve - 67 bars.
Inlet size/Outlet size = 3/8" BSP
Inox 316L

This valve protects the entire desalination unit against potentially dangerous overpressures. It is an essential safety component. In the event of overpressure, the pressure is released through the discharge port.

—- Other models suitable for desalination units available on request —-

99.17 € (Tax included)

Cette combinaison n'existe pas.

Ajouter au panier

Description:

This valve is sent pre-set to 67 bars.
- Material: Stainless Steel 316L
- Adjustable from 50 to 155 bars
- Permissible flow rate: 0-35L/min
- Inlet / Outlet port diameter: 3/8″F BSP
- Discharge port diameter: 3/8″F BSP
- Dimensions 138mm x 49mm x 34mm
- Weight: 450 grams
The safety valve is an essential component of the desalination unit. Its setting must be checked and calibrated periodically. This component should be used in conjunction with the control valve (needle valve).
